Product Overview:

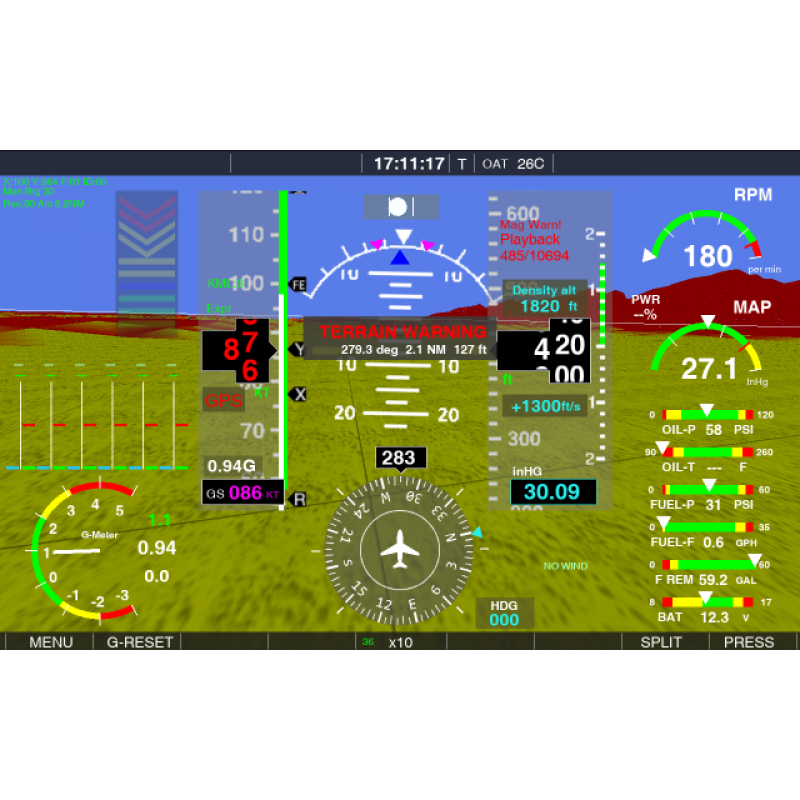

The ELM1000 EFIS is a state-of-the-art multifunctional flight instrument, designed for enhanced situational awareness and cockpit integration. Featuring a high-definition, capacitive touch 10.2" display, it provides pilots with intuitive control and clear, real-time data, powered by a robust NVIDIA chipset for an exceptional graphical experience.

Key Features:

• Artificial Horizon with integrated AHRS (Attitude and Heading Reference System)
• Synthetic Vision, including runway and obstacle visualization for enhanced safety
• Compass functionality (requires an external magnetometer)

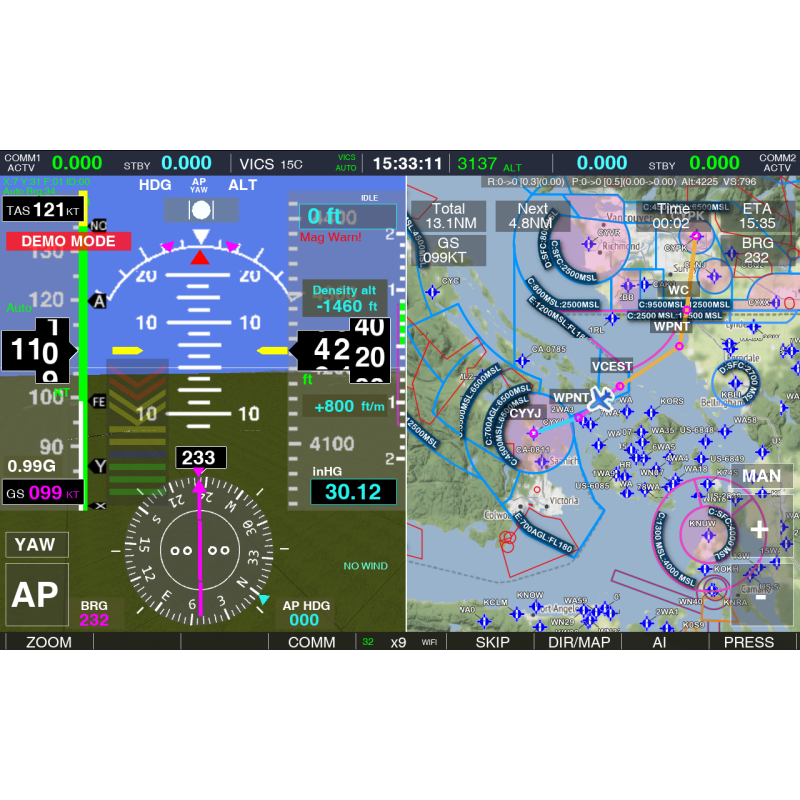

• Moving Maps with built-in flight planning capabilities
• Engine Monitoring, supported by the included EM-01 engine sensor module*
• Remote COMM Controls for simplified communication management
• Autopilot Controls integration
• Checklists for streamlined in-flight procedures
• Weight and Balance Calculations for pre-flight planning
• ADSB-In Traffic Information via USB WiFi or RS-232 (GDL90) connections
• tailBeaconX ADSB Transponder integration from uAvionix
• VPX by Vertical Power integration support
• PS Engineering Audio Panels PMA450 series integration support

Advanced Performance & Connectivity:

The ELM1000 is equipped with a built-in GPS and AHRS module, providing real-time attitude and position data. For added reliability, an external AHRS can be connected as a backup. Its powerful flight data recorder captures key flight parameters, with easy export to USB for further analysis. Data can also be viewed in Google Earth for comprehensive post-flight reviews.

Enhanced Safety Options:

When paired with an optional AOA (Angle of Attack) sensor and compatible pitot/AOA sensor, the ELM1000 can function as a digital angle of attack indicator, offering crucial insights for increased in-flight safety.

Engine Monitoring Capabilities:

The system supports a wide range of sensors, making it highly adaptable for monitoring critical engine parameters.

These include:

• Cylinder Head Temperature (CHT) and Exhaust Gas Temperature (EGT) sensors (up to 6 each)
• Fuel Pressure, Oil Pressure, and Oil Temperature sensors
• Manifold Pressure (MAP) and Coolant Temperature sensors
• Fuel Flow Meters (up to 2x)
• Engine RPM sensor (compatible with various ignition systems)
• Gearbox Temperature and Under-Cowling Temperature sensors
• Current Sensor for electrical monitoring
• CO level detection sensor

*Note: External sensors for engine monitoring are not included and are available as add-ons.

Specifications:

• Input Voltage: +10V to +28V DC
• Dimensions: 11" x 8" x 2"
• Weight: 3 lbs
• Display: 10.2" diagonal capacitive touch, 1280x800 resolution (ultra-bright)
• Receiver: GPS Neo8
• Maximum IAS: 250 Knots
• Altitude Range: -1000 ft to +32,000 ft
• Vertical Speed Range: 10,000 ft/min (up or down)
• Roll Range: 360 degrees
• Ports: USB (supports up to 32GB flash drives)
• Storage: Built-in SATA drive for extended capacity
• Antenna: Magnetic-mount GPS with male SMA connector
• Connections: Quick-connect 1/4" pitot, static, and AOA lines

Manufacturer: 360 Avionics Corp.
Country of Origin: Made in Canada
Intended Use: For experimental (homebuilt) aircraft only.

The xPlane EFIS ELM1000 delivers a comprehensive suite of avionics features, making it an ideal choice for homebuilders seeking reliable, feature-rich flight instruments.
