Product Overview:

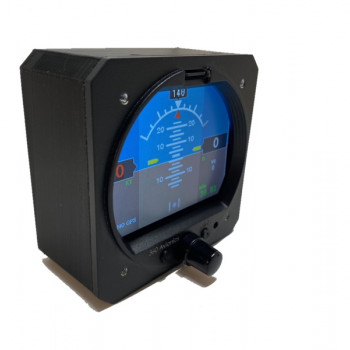

The ELM200 (MiniUni 2.25") is a compact and versatile Electronic Flight Instrument System (EFIS) designed specifically for experimental fixed-wing aircraft. Offering exceptional performance in a small form factor, this cost-effective instrument fits perfectly into a standard 2.25" panel opening and provides essential flight information and advanced features that enhance safety and situational awareness during every flight.
Key Features:
- Artificial Horizon for reliable attitude reference
- Compass for directional guidance
- G-Meter for monitoring G-forces during maneuvers
- Built-in Real-Time Clock (RTC) and flight timer for tracking flight durations
- Voltmeter to monitor electrical systems health
- Turn Rate Coordinator with bank angle indicator for precise turn management
- Outside Air Temperature (OAT) sensor support (optional)
- And more...
In-Flight Capabilities:
- Precise Sensors: Altitude pressure, airspeed, gyroscope, and accelerometer sensors provide accurate real-time data for critical flight parameters.
- V-Speed Reference Strip: Displays speed warnings based on user-defined V-speeds, ensuring safe flight envelope management at all times.
- GPS-Based Tracking: Real-time track and ground speed data are displayed for enhanced situational awareness.
- External Compass Module Support: Optionally connect an external compass to provide GPS-independent heading in areas where GPS signals may be unavailable.
- Outside Air Temperature: When paired with the optional OAT sensor, the display shows both outside air temperature and True Airspeed (TAS) for precise speed management.
- Sunlight-Readable Display: The 2.25" transflective display ensures clear visibility even under direct sunlight and varying light conditions.
- Intuitive Controls: A built-in rotary knob allows for easy adjustment of barometric pressure, heading bug settings, and quick access to the settings menu for configuration.
Post-Flight Analysis:
- Flight Data Recorder: Logs key flight parameters at set intervals for later analysis. Data can be exported to a computer using a Micro SD card for further review and diagnostics.
- Google Earth Export: Export flight paths in Google Earth format to visualize your entire route and flight path on detailed maps, allowing for comprehensive post-flight review.
Available Versions:
GPS-Based Version:
- Operates solely on GPS information, eliminating the need for pitot/static connections.
- Features a barometric altimeter for precise altitude measurement, with airspeed displayed based on GPS ground speed.
- The artificial horizon relies on GPS corrections, which may have limitations, but can be upgraded with a stand-alone AHRS module (not included) for full pitot/static integration.
Full Pitot + GPS Version:
- Incorporates dynamic pressure sensors and supports pitot/static connections.
- Delivers the most precise flight data, including accurate artificial horizon, airspeed, and true airspeed readings by utilizing all available sensors.
Specifications:
- Input Voltage: +10V to +28V DC
- Dimensions: 68mm x 68mm x 81mm
- Weight: 150g
- Display: 2.25" diagonal, 320x240 pixels, sunlight-readable transflective technology
- GPS Receiver: High-sensitivity uBlox
- Maximum IAS: 250 Knots
- Altitude Range: -1000 ft to +32,000 ft
- Vertical Speed Range: ±10,000 ft/min
- Roll Range: 360 degrees
- SD Card: 4GB FAT formatted (supports up to 16GB)
- Antenna: Magnetic-mount GPS with male SMA connector
- Pitot/Static Lines: Quick-connect 1/4" plumbing
Manufacturer: 360 Avionics Corp.
Country of Origin: Made in Canada
Intended Use: For experimental (homebuilt) aircraft only.
The ELM200 offers a highly functional, space-saving EFIS solution, designed to meet the needs of experimental aircraft builders and pilots who value precision, reliability, and advanced flight data analysis.
