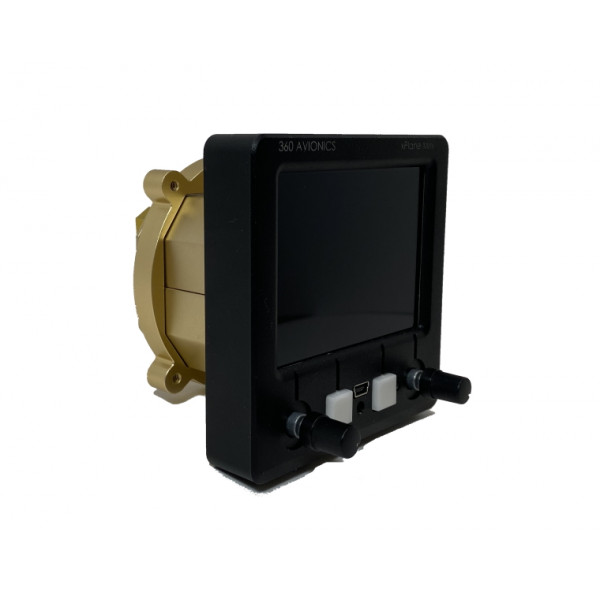

ELM350 3.5" Flight Instrument

Product Overview:

The ELM350 (Mini 3.125") is a versatile and cost-effective Electronic Flight Instrument System (EFIS) designed specifically for experimental aircraft. This compact instrument delivers high performance and an extensive range of features, enhancing situational awareness, flight control, and engine monitoring. Its advanced capabilities make it an essential tool for pilots seeking precision, ease of use, and reliability.

Key Features:

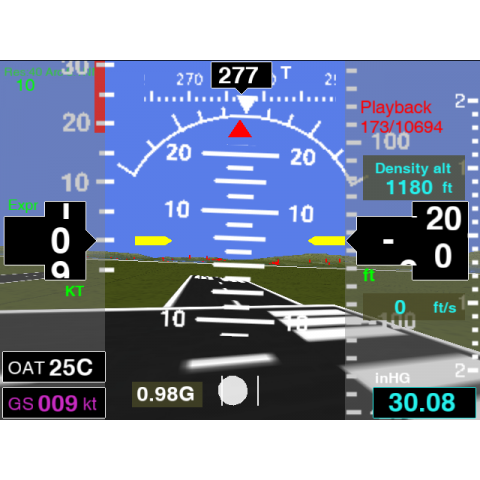

• Artificial Horizon for accurate attitude indication.

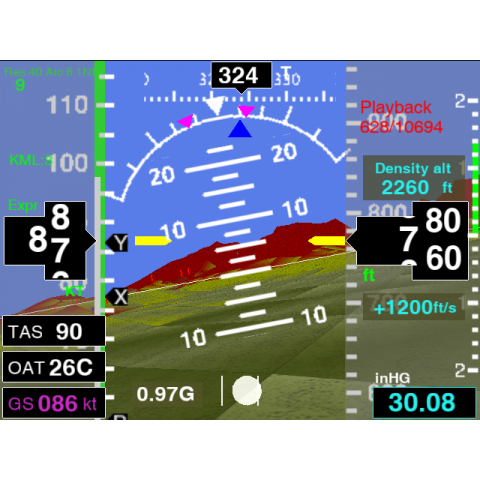

• 3D Synthetic Vision with terrain and obstacle awareness for enhanced situational awareness*
• Compass (external module or GPS track-based).
• G-Meter for monitoring load factors during flight.
• Time Display (local, UTC, flight time, and timer).
• Voltmeter to track electrical system performance.
• Turn Rate and Bank Angle indicators for precise control.
• Outside Air Temperature (OAT) display (optional sensor required).
• Flight Plan Integration: Import and export flight plans from compatible GPS units via NMEA messages.
• External Autopilot Control: Supports standard NMEA message modes for seamless autopilot integration.
• EnGood Engine Monitor Support: Full on-screen display of critical engine parameters like CHT, EGT, RPM, and MAP (with compatible EM-01 module).
• Course Deviation Indicator for navigation precision.
• Altitude Encoder for transponder integration.
• uAvionix tailBeaconX Controls: Full integration for managing ADSB/Transponder modes (A, C, S).

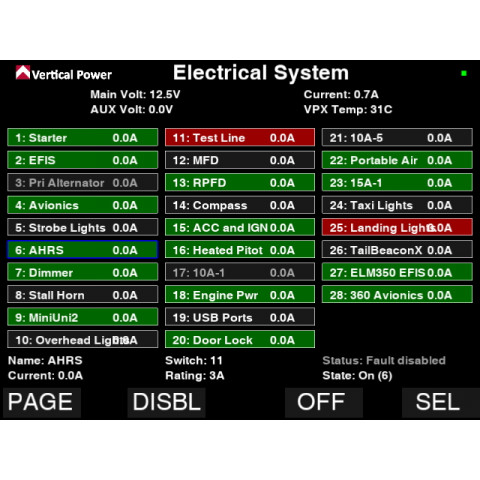

• VPX Electronic Circuit Breaker Controls: Integration for managing VPX circuit breaker system

In-Flight Features:

• High-Precision Sensors: Altitude pressure, airspeed, gyroscope, and accelerometer for accurate flight data.
• Powered by GPU: For smooth and responsive graphics performance, enhancing the user experience.
• V-Speed Vertical Reference Strip: Provides real-time speed warnings based on pre-defined user inputs for enhanced safety.
• GPS-Based Track and Ground Speed: Displays additional situational awareness metrics.
• Optional OAT Sensor: Displays OAT and True Airspeed (TAS) when installed.
• External Compass Module Support: Ensures heading indication even in GPS-denied environments.
• Ultra-Bright Sunlight-Readable Display: A 3.125" display designed to perform under varying lighting conditions, including direct sunlight.
• User-Friendly Interface: A built-in rotary knob and two buttons offer easy adjustment of barometric pressure, heading bug, and system configuration through a built-in settings menu.
• Backup Power Support: Compatible with an external backup battery unit (BBU), available separately.
• Full EnGood Engine Monitor Integration: Special-order version supports the EnGood EM-01 module for detailed engine monitoring of CHT, EGT, RPM, MAP, and more.
• uAvionix tailBeaconX Remote Control: Supports full transponder control, enhancing your aircraft’s avionics capabilities.

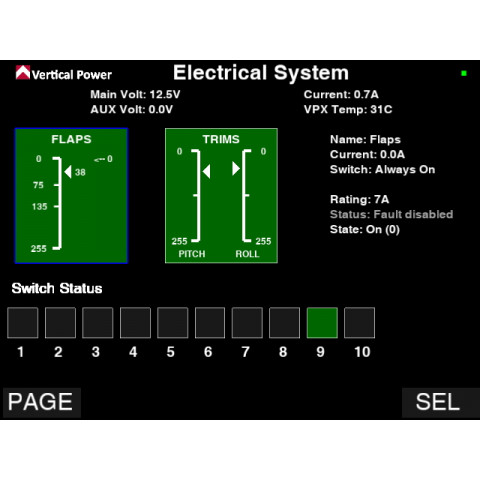

• VPX Electronic Circuit Breaker Control: Supports full controls of VPX circuit breaker system with warning messages on screen

Post-Flight Analysis:

• Flight Data Recorder: The built-in data recorder logs various flight parameters at predefined intervals. Data can be exported via Mini SD Card for analysis.
• Google Earth Export: Export flight paths and altitude data in Google Earth format, providing a visual review of the flight route and performance.

Additional Features of this Model:

• Built-In AHRS Module: For reliable attitude and heading reference.
• All-Aluminum Enclosure: Provides durability and resistance to harsh flight conditions.
• Dynamic and Static Pressure Sensors: Includes quick-connect fittings for easy installation of pitot/static lines.
• GPS Receiver: Integrated high-sensitivity Ublox GPS receiver for precise location data.

Specifications:

• Input Voltage: +10V to +28V DC
• Unit Size: 95mm x 95mm x 90mm
• Weight: 450g
• Display Size: 3.5" diagonal
• Display Resolution: 640x480 pixels (ultra-bright display)
• Maximum IAS: 250 knots
• Altitude Range: -1000 ft to +32,000 ft
• Vertical Speed Range: 10,000 ft/min up or down
• Pitot/Static Range: 360° roll
• Ports:
  • USB Port: MiniUSB with adapter for connecting USB flash drives.
  • MicroSD Port: Supports up to 32 GB for map and database storage.

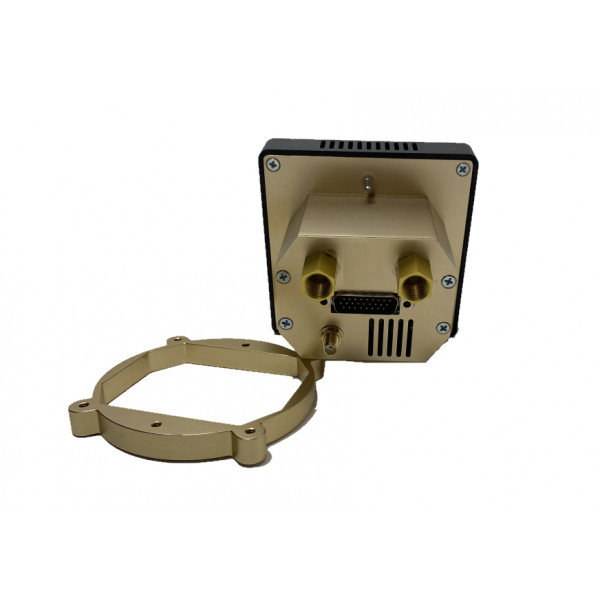

• Antenna: Magnetic mount GPS with male SMA connector.
• Pitot/Static Lines: Quick-connect 1/4" plumbing for easy installation.

Manufacturer: 360 Avionics Corp.
Made in Canada.

Compatibility and Installation:

The ELM350 fits into a standard aviation panel opening of 3.125" (79mm), making it easy to install in most experimental aircraft. It is compatible with a wide range of external sensors and systems, ensuring flexibility and future upgrades.

For Use in Experimental (Homebuilt) Aircraft Only.

Why Choose the ELM350?

The MiniUni ELM350 is a feature-rich EFIS that enhances flight safety and performance through advanced monitoring, seamless integration with GPS and autopilot systems, and user-friendly controls. Its compact size and powerful functionality make it an excellent choice for experimental aircraft pilots who demand reliability and versatility in their avionics systems.
