Digital Magnetometer Sensor 3-axis

Product Overview:

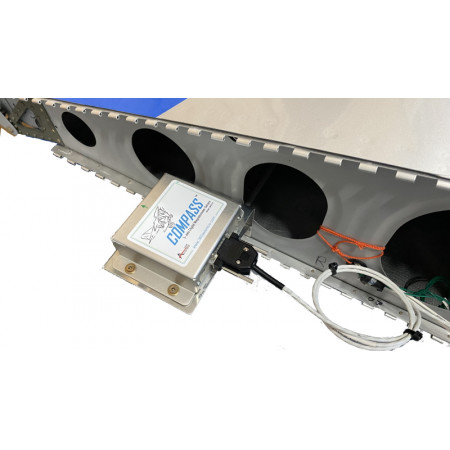

The Compass MAG-01 is a compact, lightweight, and cost-effective magnetometer designed to deliver stabilized magnetic heading information. Utilizing advanced 3-axis sensing technology, it accurately detects the Earth's magnetic field, making it an essential component for enhancing Air Data and AHRS (Attitude and Heading Reference System) operations in experimental aircraft.

Key Features:

• Accurate 3-Axis Magnetic Sensing: Detects the Earth’s magnetic field with precision across three axes, providing real-time heading data.
• Stabilized Magnetic Heading: Delivers stabilized heading information for use in AHRS systems, ensuring accurate navigation under various flight conditions.
• Seamless Integration: Easily connects to compatible EFIS units such as the ELM1000 or ELM350, enhancing the system’s overall performance.
• Tilt Compensation: Built-in tilt compensation ensures accurate magnetic heading, even when the aircraft is in extreme pitch or roll positions.
• Gyroscopic Sensor: Includes an integrated gyroscope to provide stabilized heading data even during dynamic flight maneuvers.

Advanced Integration with EFIS Systems:

When connected to ELM1000, ELM350, or MiniUni EFIS units, the MAG-01 becomes a critical component of the aircraft’s navigation system. It provides magnetic heading information to the EFIS, working in tandem with GPS and air data computers to offer a high level of precision and integrity in attitude and heading measurements. The combination of the MAG-01 magnetometer and an AHRS system replaces traditional mechanical gyros, using solid-state sensors for long-term reliability and accuracy.

In-Flight Features:

• Stabilized Heading Information: Provides steady, reliable magnetic heading data for the aircraft.
• 3-Axis Measurement: Measures magnetic field strength along three axes for maximum accuracy.
• Tilt Compensation: Ensures heading accuracy even during extreme pitch and roll.
• High Precision: Offers a high level of precision and integrity, enhancing overall flight safety and navigation.

Specifications:

• Input Voltage: +10V to +28V DC
• Unit Size: 125mm x 90mm x 35mm
• Weight: 95g

Manufacturer: 360 Avionics Corp.
Made in Canada.

Important Note:
The MAG-01 is non-TSO certified and designed exclusively for experimental (homebuilt) aircraft installations. It requires connection to a compatible EFIS system for normal operation.

Why Choose MAG-01?

The MAG-01 Compass provides stabilized, high-precision magnetic heading information that integrates seamlessly with EFIS systems, enhancing the overall situational awareness and navigation capabilities of your experimental aircraft. By replacing traditional mechanical instruments with solid-state, long-life technology, the MAG-01 ensures accurate heading data throughout your flight.
