| uAvionix tailBeaconX TSO ADS-B Transponder |

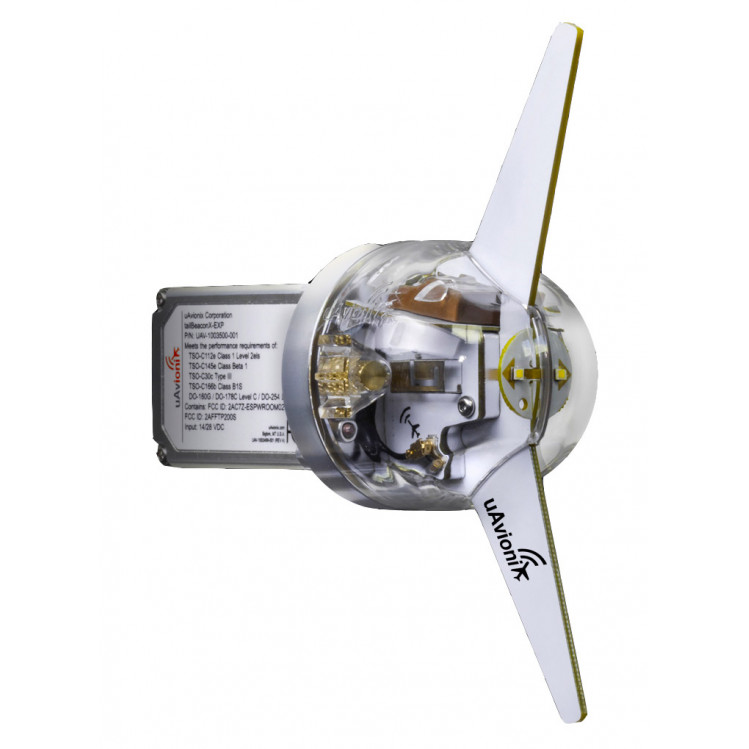

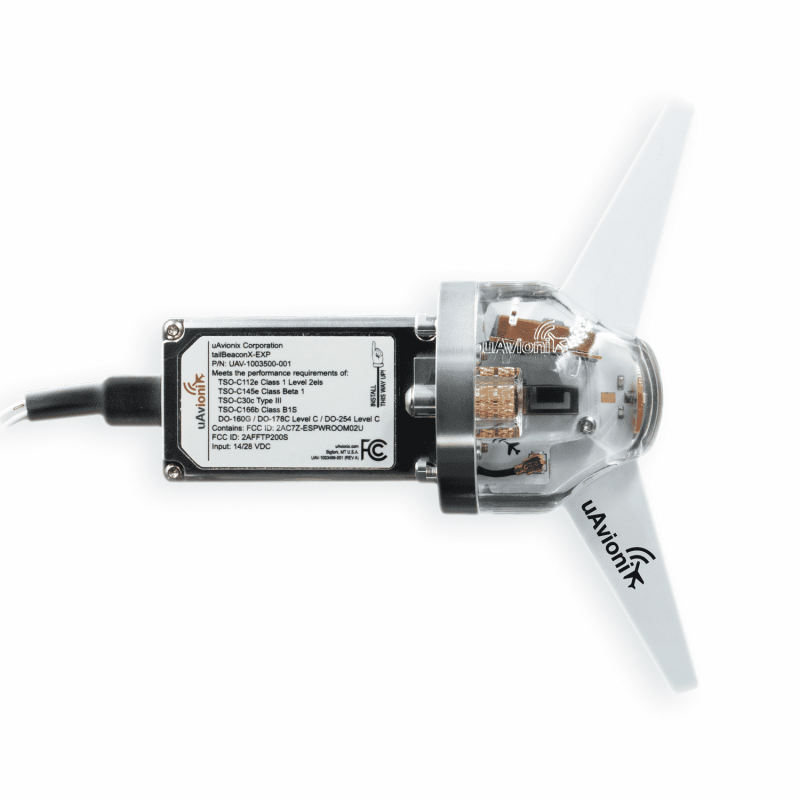

| The next era of global ADS-B. Compatible with space and ground-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and WAAS GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations. Transponder Redefined



 Think Outside the AirframetailBeaconX is the world’s first transponder which acts as a rear position light replacement. The 1090MHz Mode S ADS-B OUT transponder satisfies the requirements for all existing and inevitable ADS-B regulations worldwide, especially those leveraging space-based ADS-B. Fly knowing no matter your destination, tailBeaconX will keep your aircraft connected.World-Wide CoveragetailBeaconX embraces the future, providing precision ADS-B data to the Aireon satellite network without the need for diversity antennas. When it comes to terra firma, tailBeaconX also exceeds the performance of traditional panel installed transponders that use belly mount antennas.Less Ground Time - Easiest InstalltailBeaconX mounts in place of your existing rear position light. The GPS, space-based, and ground-based antennas are integrated in to the lens housing. No new holes or pentetration of pressure vessels are required making tailBeaconX the lowest-hassle easiest install period.More Than A MandateThe ELM350, ELM1000 and MiniUni3 have been upgraded to include transponder control functionality! The tailBeaconX combined with the ELM350, ELM1000 or MiniUni3 multiplies your cockpit functionality while future-proofing your ADS-B system to meet current and inevitable mandates worldwide. |
| tailBeaconX can also be controlled via phone application (WiFi) or other compatible EFIS units. |
Available Installation Guides:
User and Installation Guide TSO Version
User and Installation Guide Experimental Version
- Physical Specifications
- Width: 42.53mm
- Height: 110.38mm
- Depth: 112.75mm
- Weight: 3.5 oz (100 grams)
- Operating Temperature Range: -45°C to +70°C
- Maximum Pressure Altitude: 60,000ft
- Input Voltage Range: 9 to 33 VDC
- 14V Current: 0.5A Max
- 28V Current: 0.25A Max
- Mode S Transponder Specifications
- Transmit Frequency: 1090 MHz
- Transmit Power: 54dBm (250W)
- Receive Frequency: 1030 MHz
- ATCRBS Sensitivity: -74 dBm
- Mode S Sensitivity: -74 dBm
- Position Light Specifications
- Color: Aviation White
- Intensity: 20 candelas
- Control Interface Specifications
- Physical: RS232
- Baudrate: 2400 bps 8N1
- Protocols: UCP, SL-70, STX165R
Manufacturer: uAvionix Corp
Made in USA
