ELM350 3.5" Flight Instrument
Why buy from us?
Avionics built for experimental aircraft—performance, flexibility, and support that keep you flying.
Ask a Question About This Product
- Stock: Out Of Stock
- Brand: 360 Avionics Corp
- Model: ELM350
Available Options
Shipping Information
360 Avionics Company normally ships goods within 2 - 4 weeks after the order is placed by customer and payment is received by 360 Avionics Company. Shipping times may vary depending on the products ordered, parts availability and production work load. 360 Avionics Company will only ship complete orders, once all the parts are in stock. In the event that your kit consists of out-of-stock products, 360 Avionics may require additional time to prepare your order and in these special cases 360 Avionics will notify the customer of any shipping delays associated with these orders. All shipping dates given are based on estimates provided by suppliers and/or production lead times. 360 Avionics Company cannot guarantee delivery dates, since delivery dates depend on the shipping carrier used . If you need to receive an order by a specific date, please contact 360 Avionics Company for assistance. If you want 360 Avionics Company to ship partial orders (i.e. before all parts are received by us), we can do it, but additional shipping charges may apply.
We do not ship to PO Box addresses. If you pay for your order by credit card, we will ONLY ship your order to the Billing Address, associated with your credit card.
We use Canada Post or Purolator to ship all domestic orders (within Canada) and UPS or Purolator to ship all international orders, unless a different service is requested by the customer (under his own account with the carrier) at the time of placing the order, provided that the chosen shipping carrier is authorized to ship the goods ordered by the customer. A customer is required to provide a phone number for all orders shipped by 360 Avionics Company. For each shipment, a tracking number will be provided to the customer within 48 hours after the order is shipped.
Shipping Insurance Terms
All packages are shipped without insurance by default. Customers can select the option to add shipping insurance for the full value of their package directly on the product page. If you choose to decline shipping insurance, you accept full responsibility for any loss or damage that may occur during shipping, and our company will not be liable for any such issues.
Return Policy
We accept returns. You can return unused, uninstalled product in the original condition and packaging for a full refund less shipping costs within 15 days from delivery date, accompanied by a proof of purchase, as well as the RMA number, which can be obtained by email from one of our representatives (at info@360avionics.com). The customer is responsible for correctly labeling the package with "RETURN ITEM" on the box and in the shipping paperwork.
If more than 15 days have passed since your product delivery date, we can no longer offer you a full refund. In most cases we still can offer you an in-store credit for the amount of the returned item cost less 15% - 20% restocking fees (depends on the product).
To follow-up on the status of your return, please contact us at info@360avionics.com.
-90x90h.jpg "ELM800 8\" EFIS with Touch display HD")
Product Overview:
The ELM350 (Mini 3.125") is a versatile and cost-effective Electronic Flight Instrument System (EFIS) designed specifically for experimental aircraft. This compact instrument delivers high performance and an extensive range of features, enhancing situational awareness, flight control, and engine monitoring. Its advanced capabilities make it an essential tool for pilots seeking precision, ease of use, and reliability.
Key Features:
- Artificial Horizon for accurate attitude indication.
- 3D Synthetic Vision with terrain and obstacle awareness for enhanced situational awareness*

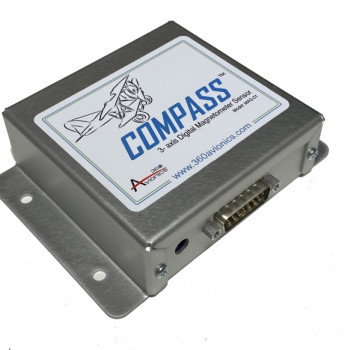

- Compass (external module or GPS track-based).
- G-Meter for monitoring load factors during flight.
- Time Display (local, UTC, flight time, and timer).
- Voltmeter to track electrical system performance.
- Turn Rate and Bank Angle indicators for precise control.
- Outside Air Temperature (OAT) display (optional sensor required).
- Flight Plan Integration: Import and export flight plans from compatible GPS units via NMEA messages.
- External Autopilot Control: Supports standard NMEA message modes for seamless autopilot integration.
- EnGood Engine Monitor Support: Full on-screen display of critical engine parameters like CHT, EGT, RPM, and MAP (with compatible EM-01 module).
- Course Deviation Indicator for navigation precision.
- Altitude Encoder for transponder integration.
- uAvionix tailBeaconX Controls: Full integration for managing ADSB/Transponder modes (A, C, S).
- VPX Electronic Circuit Breaker Controls: Integration for managing VPX circuit breaker system
In-Flight Features:
- High-Precision Sensors: Altitude pressure, airspeed, gyroscope, and accelerometer for accurate flight data.
- Powered by GPU: For smooth and responsive graphics performance, enhancing the user experience.
- V-Speed Vertical Reference Strip: Provides real-time speed warnings based on pre-defined user inputs for enhanced safety.
- GPS-Based Track and Ground Speed: Displays additional situational awareness metrics.
- Optional OAT Sensor: Displays OAT and True Airspeed (TAS) when installed.
- External Compass Module Support: Ensures heading indication even in GPS-denied environments.
- Ultra-Bright Sunlight-Readable Display: A 3.125" display designed to perform under varying lighting conditions, including direct sunlight.
- User-Friendly Interface: A built-in rotary knob and two buttons offer easy adjustment of barometric pressure, heading bug, and system configuration through a built-in settings menu.
- Backup Power Support: Compatible with an external backup battery unit (BBU), available separately.
- Full EnGood Engine Monitor Integration: Special-order version supports the EnGood EM-01 module for detailed engine monitoring of CHT, EGT, RPM, MAP, and more.
- uAvionix tailBeaconX Remote Control: Supports full transponder control, enhancing your aircraft’s avionics capabilities.
- VPX Electronic Circuit Breaker Control: Supports full controls of VPX circuit breaker system with warning messages on screen
Post-Flight Analysis:
- Flight Data Recorder: The built-in data recorder logs various flight parameters at predefined intervals. Data can be exported via Mini SD Card for analysis.
- Google Earth Export: Export flight paths and altitude data in Google Earth format, providing a visual review of the flight route and performance.
Additional Features of this Model:
- Built-In AHRS Module: For reliable attitude and heading reference.
- All-Aluminum Enclosure: Provides durability and resistance to harsh flight conditions.
- Dynamic and Static Pressure Sensors: Includes quick-connect fittings for easy installation of pitot/static lines.
- GPS Receiver: Integrated high-sensitivity Ublox GPS receiver for precise location data.
Specifications:
- Input Voltage: +10V to +28V DC
- Unit Size: 95mm x 95mm x 90mm
- Weight: 450g
- Display Size: 3.5" diagonal
- Display Resolution: 640x480 pixels (ultra-bright display)
- Maximum IAS: 250 knots
- Altitude Range: -1000 ft to +32,000 ft
- Vertical Speed Range: 10,000 ft/min up or down
- Pitot/Static Range: 360° roll
- Ports:
- USB Port: MiniUSB with adapter for connecting USB flash drives.
- MicroSD Port: Supports up to 32 GB for map and database storage.
- Antenna: Magnetic mount GPS with male SMA connector.
- Pitot/Static Lines: Quick-connect 1/4" plumbing for easy installation.
Manufacturer: 360 Avionics Corp.
Made in Canada.
Compatibility and Installation:
The ELM350 fits into a standard aviation panel opening of 3.125" (79mm), making it easy to install in most experimental aircraft. It is compatible with a wide range of external sensors and systems, ensuring flexibility and future upgrades.
For Use in Experimental (Homebuilt) Aircraft Only.
Why Choose the ELM350?
The MiniUni ELM350 is a feature-rich EFIS that enhances flight safety and performance through advanced monitoring, seamless integration with GPS and autopilot systems, and user-friendly controls. Its compact size and powerful functionality make it an excellent choice for experimental aircraft pilots who demand reliability and versatility in their avionics systems.
International Buyers (outside of Canada) – Please Note:
Import duties, brokerage fees, taxes and charges are not included in the item price or shipping cost. These charges are the buyer's sole responsibility. Please check with your country's customs office and local state authorities to determine what these additional costs will be prior to buying. For North American customers - our products are manufactured in Canada and we use Tariff 10 (NAFTA Agreement) for all shipments. Normally this should exempt you from additional taxes but this is NOT guaranteed so please check with local state authorities about possible additional brokerage fees/duties/taxes when receiving a goods from Canada.
